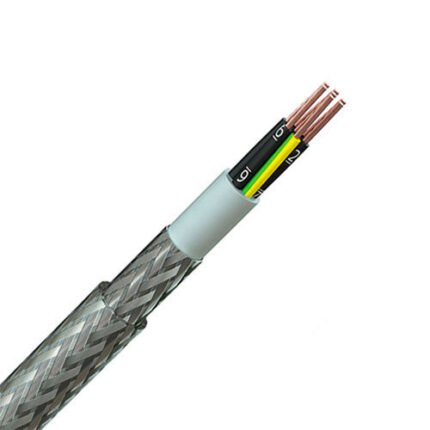

SY Multicore Colour Coded Cable
Where mechanical protection is called for on a flexible cable, SY cable is a popular choice. The tough, flexible, clear outer sheath provides excellent abrasion and oil resistance. SY cables are suitable as a supply or control cable for motors, plant, machinery and many other applications.
Colour coded versions are also available – SY Multicore Number Coded Cable.
- CPR-Compliant options
- Versatile, flexible control cable
- Wide range of sizes and core counts
- Galvanised steel braid for mechanical protection
- Highly flexible
CPR-Compliant options are available for this cable and are indicated in the product table. For the latest information on CPR for Cables, you can visit our dedicated CPR Explained web page. We have created a series of short CPR videos to break down all the significant areas and have updated our ‘CPR for Cables’ guide, available for you to download.
Image representative of product style, product supplied may vary.
Construction
- Fine copper wire strands to IEC 60228 Class 5.
- Black PVC insulation with white number coded cores
- Cables with more than 2 cores include a green/yellow earth, cores twisted together.
- Grey PVC inner sheath, steel wire braid, clear PVC outer sheath.
Only logged in customers who have purchased this product may leave a review.
SALES ENQUIRIES
Belcable's Products have Authorized Dealers in Middle east and United Kingdom.
Kindly Contact them to place Your Order.
CABLES HOUSE Cables & Wires Trading LLC
Cables House Cables & Wires Trading LLC Dubai. United Arab Emirates| Voltage Rating: | |
| Working: | 300/500V |
| Test: | 3000V |
| Temperature Rating: | |
| Static: | -20°C to +80°C |
| Flexing: | -5°C to +70°C |
| Bending Radius: | |
| Fixed: | 10 x cable diameter |
| Flexing: | 20 x cable diameter |
| Current Rating: | Refer to IEE Regs Table 4F3A&B |
RELATED PRODUCTS

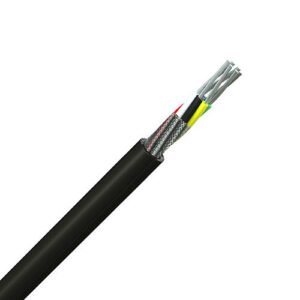

Def Stan 7-1 Type D Individual Braid Screened Control Cable PVC
Originally developed for military and defence, Def Stan 7-1 (Type D) cables (also known as Defence Standard cables) are now widely used in many industries for a variety of different applications.
Def Stan cables are a robust and economical choice which can also be oversheathed or armoured for duct installation or direct burial. Def Stan cables should not be used a mains connection cables. Applications include data processing, information transfer, process control and security as well as many industrial applications.
- Versatile, flexible control cable
- Compact sizing, high working voltage
- Wide range of sizes
- Flexible PVC jacket
- Individually screened
SY Multicore Number Coded Cable
Where mechanical protection is called for on a flexible cable, SY cable is a popular choice. The tough, flexible, clear outer sheath provides excellent abrasion and oil resistance. SY cables are suitable as a supply or control cable for motors, plant, machinery and many other applications.
Number coded versions are also available - SY Multicore Colour Coded Cable.
- CPR-Compliant options
- Versatile, flexible control cable
- Wide range of sizes and core counts
- Galvanised steel braid for mechanical protection
- Highly flexible

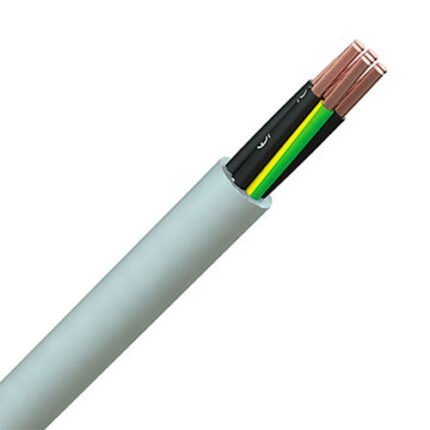

YY Multicore Number Coded Cable
