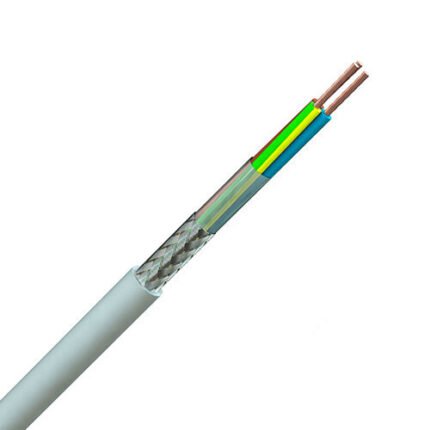

LiYCY Screened Multicore Number Coded Cable
LiYCY has a tinned copper wire braid screen, providing protection from electromagnetic interference (EMI) and reducing electromagnetic radiation (EMR). This can be important when trying to ensure electromagnetic compatibility (EMC).
- CPR-Compliant options
- Versatile, flexible control cable
- Wide range of sizes and core counts
- Tinned copper wire braid screen, providing protection from electromagnetic interference (EMI)
- Highly flexible
For Low Smoke Halogen Free types, please see the LF-315 & LF-329 range.
CPR-Compliant options are available for this cable and are indicated in the product table. For the latest information on CPR for Cables, you can visit our dedicated CPR Explained web page. We have created a series of short CPR videos to break down all the significant areas and have updated our ‘CPR for Cables’ guide, available for you to download.
Image representative of product style, product supplied may vary.
Construction
- Fine copper wire strands to IEC 60228.
- PVC insulation colour coded.
- Cores twisted together with overall polyester tape and tinned copper wire braid.
- Grey PVC outer sheath.
Only logged in customers who have purchased this product may leave a review.
SALES ENQUIRIES
Belcable's Products have Authorized Dealers in Middle east and United Kingdom.
Kindly Contact them to place Your Order.
CABLES HOUSE Cables & Wires Trading LLC
Cables House Cables & Wires Trading LLC Dubai. United Arab Emirates| Voltage Rating: | |||||
| 0.14mm² - 0.34mm²: | 0.5mm² - 1.5mm²: | 2.5mm² - 6mm²: | |||
| Working: | 250V | Working: | 300V | Working: | 500V |
| Test: | 1000V | Test: | 2000V | Test: | 2000V |
| Temperature Rating: | |||||
| Static: | -20°C to +80°C | ||||
| Flexing: | -5°C to +70°C | ||||
| Minimum Bending Radius: | |||||
| Fixed: | 6 x cable diameter | ||||
| Flexing: | 15 x cable diameter | ||||
| Colour Code: | HD308 S2 (BS7671) |
RELATED PRODUCTS
LiYY Cable
Flexibility is ensured through the use of fine copper wire stranding and pliable PVC compounds. This makes the cable ideal for use on portable or movable equipment or where flexibility will make installation considerably easier.
Large sizes are also available on short lead times as are American UL listed versions. Where resistance to water or many oils is required, polyurethane (PUR) jackets offer excellent protection and are available on short lead times.
- CPR-Compliant options
- Unscreened miniature signal and data cable
- Colour coded to DIN 47100

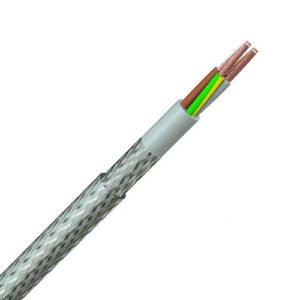

SY Multicore Colour Coded Cable
Where mechanical protection is called for on a flexible cable, SY cable is a popular choice. The tough, flexible, clear outer sheath provides excellent abrasion and oil resistance. SY cables are suitable as a supply or control cable for motors, plant, machinery and many other applications.
Colour coded versions are also available - SY Multicore Number Coded Cable.
- CPR-Compliant options
- Versatile, flexible control cable
- Wide range of sizes and core counts
- Galvanised steel braid for mechanical protection
- Highly flexible
SY Multicore Number Coded Cable
Where mechanical protection is called for on a flexible cable, SY cable is a popular choice. The tough, flexible, clear outer sheath provides excellent abrasion and oil resistance. SY cables are suitable as a supply or control cable for motors, plant, machinery and many other applications.
Number coded versions are also available - SY Multicore Colour Coded Cable.
- CPR-Compliant options
- Versatile, flexible control cable
- Wide range of sizes and core counts
- Galvanised steel braid for mechanical protection
- Highly flexible

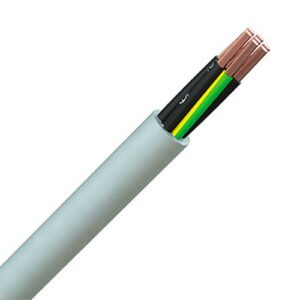

YY Multicore Number Coded Cable
