Alternative to Belden 9735 Cable
For RS422 connection and any other application requiring both low capacitance and excellent isolation between pairs. Used for CAD/CAM and many other industrial applications with high data rates.
- High quality alternative to genuine Belden
- Cut to length required
- Low capacitance

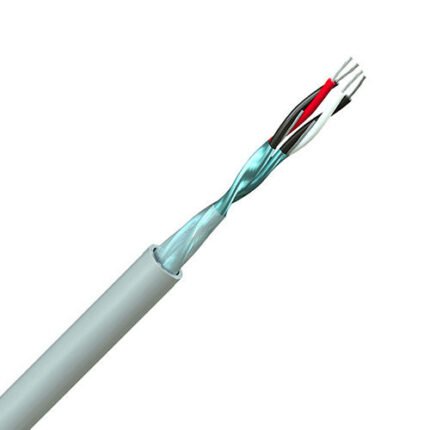

Image representative of product style, product supplied may vary.
Construction
Tinned copper conductor 24(7) AWG 0.22mm², foam polyolefin insulation, colour chart 3, twisted into pairs, each pair aluminium/polyester foil screened, tinned copper drain wire (24AWG), PVC sheath.
Only logged in customers who have purchased this product may leave a review.
SALES ENQUIRIES
Belcable's Products have Authorized Dealers in Middle east and United Kingdom.
Kindly Contact them to place Your Order.
CABLES HOUSE Cables & Wires Trading LLC
Cables House Cables & Wires Trading LLC Dubai. United Arab Emirates| Voltage Rating: | 300V |
| CE: | 450/450V† |
| Nominal Impedance: | 100 Ohms |
| Capacitance: | |
| Core to core: | 41 pFm |
| Core to screen : | 76 pF/m |
| UL Style*: | 2493 |
| Colour Code: | Chart 3 |
*UL style numbers are given for cross reference purposes only. Not all the cables on this page are tested to or approved by UL. If you require UL approved versions please tell us when you first enquire.
† Applies to CE marked FSC branded stock only.
