Alternative to Belden 8769 Cable
Individually screened multipair data cable 22AWG. These cables are used extensively within security, computer and instrumentation applications. Many sizes are also used within the audio field as snake cables where the individual screening of pairs reduces cross talk.
- High quality alternative to genuine Belden
- Cut to length required
- Low capacitance

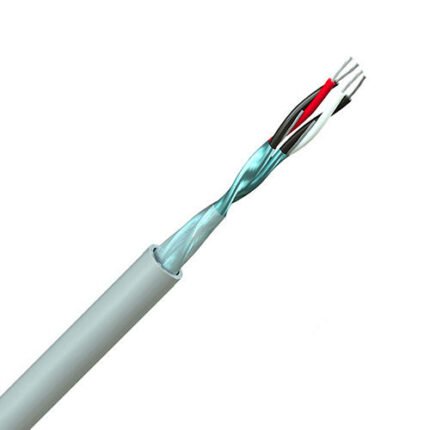

Image representative of product style, product supplied may vary.
Construction
Tnned copper conductor 22(7) AWG, 0.35mm². Polypropylene insulated. Twisted into pairs, each pair aluminium/polyester foil screened, tinned copper drain wire (24AWG), PVC sheath.
Only logged in customers who have purchased this product may leave a review.
SALES ENQUIRIES
Belcable's Products have Authorized Dealers in Middle east and United Kingdom.
Kindly Contact them to place Your Order.
CABLES HOUSE Cables & Wires Trading LLC
Cables House Cables & Wires Trading LLC Dubai. United Arab Emirates| Voltage Rating: | 300V |
| CE: | 450/750V† |
| Nominal Impedance: | 50 Ohms |
| UL Style*: | 2919 |
| Capacitance: | |
| Core to core: | 98 pF/m |
| Core to screen: | 180 pF/m |
| Colour Code: | Chart 3 |
*UL style numbers are given for cross reference purposes only. Not all the cables on this page are tested to or approved by UL. If you require UL approved versions please tell us when you first enquire.
† Applies to CE marked FSC branded stock only.
