Alternative to Belden 8103 Cable
A range of high performance cables for use over extended distances at high data rates for RS232 and RS422 applications. Also well suited to industrial measurement applications where low signal distortion is required.
- High quality alternative to genuine Belden
- Cut to length required

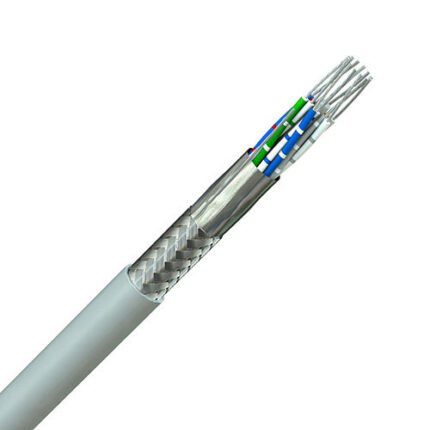

Image representative of product style, product supplied may vary.
Construction
Tinned copper conductor 24(7) AWG, 0.22mm², foam polyolefin insulation. Twisted into pairs, overall aluminium/polyester foil screen, tinned copper drain wire (24AWG), overall tinned copper braid (65%). LSF sheath.
Only logged in customers who have purchased this product may leave a review.
SALES ENQUIRIES
Belcable's Products have Authorized Dealers in Middle east and United Kingdom.
Kindly Contact them to place Your Order.
CABLES HOUSE Cables & Wires Trading LLC
Cables House Cables & Wires Trading LLC Dubai. United Arab Emirates| Voltage Rating: | 300V |
| CE: | 450/750V† |
| Nominal Impedance: | 100 Ohms |
| Capacitance: | |
| Core to core: | 41 pF/m |
| Core to screen: | 72 pF/m |
| UL Style*: | 2919 |
| Colour Chart: | Chart 5 |
*UL style numbers are given for cross reference purposes only. Not all the cables on this page are tested to or approved by UL. If you require UL approved versions please tell us when you first enquire.
† Applies to CE marked FSC branded stock only.
